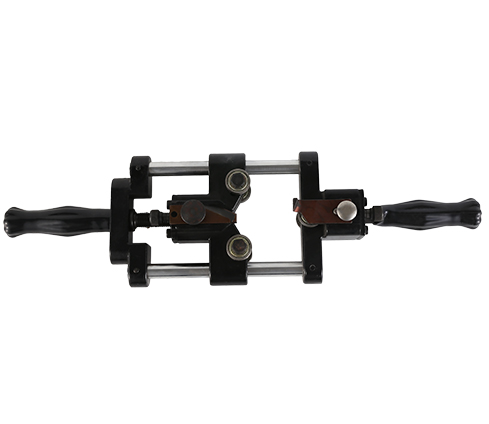

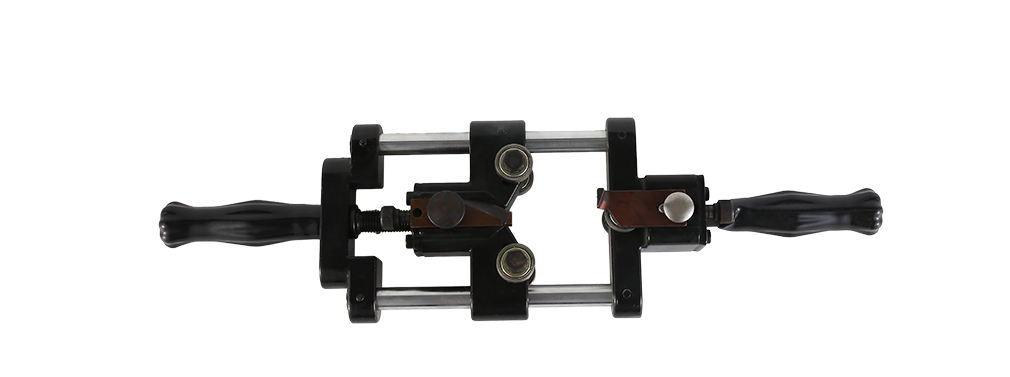

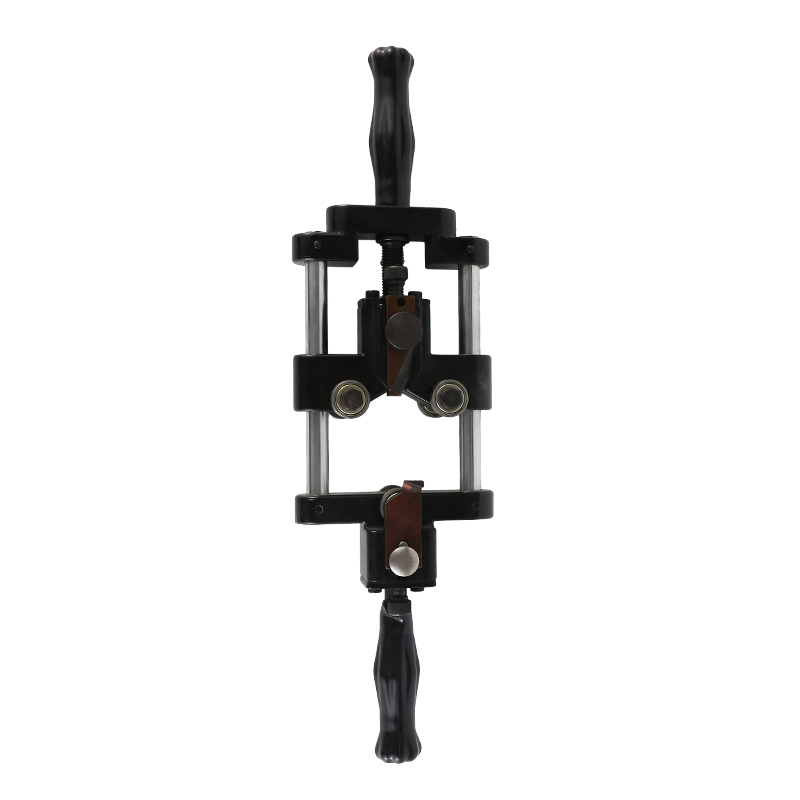

Cable Stripper Knife BX-90 Peeling Wire Cable Between 40-90mm

Cable Stripper Knife BX-90 Peeling Wire Cable Between 40-90mm

Product use and characteristics

1.Suitable for stripping the main insulation layer and semiconductive layer at the end of Ø40-90mm high voltage cable. Generally, It is suitable for stripping 110KV cables.

2.With simple operation, rapid stripping, no damage to the core, and light carrying, it is simple, intuitive and convenient

3.Forged from alloy steel, the blade will be sharp and durable after heat treatment. In case of minor damage, you can be sharpened and replace by yourself.

Product parameters
Model BX-90
Stripping range Insulation Layer and semi-conductive layer of cable with dia.40-90mm
Weight 2.47kg
size 510×150×90mm
product details

1.HIGH QUALITY CARBON STEEL ADOPTED

It is durable, small in size, light in weight, and easy to operate.

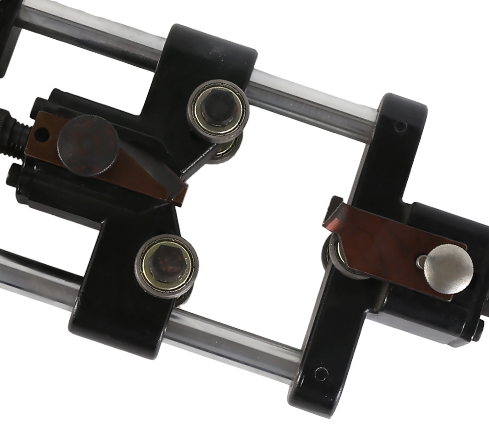

2.SWITCH to adjust the BLADE

When the wire is stripped, the depth of the blade can be adjusted at will and the core is not easily damaged.

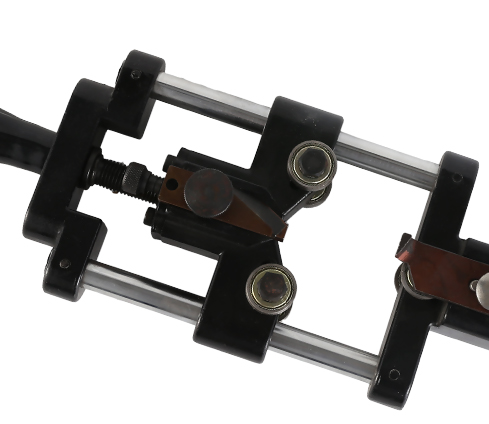

3.Rolling bearing

Adjust the distance between the jaws so that the rolling bearing catches the cable which helps to rotates the wire stripper quickly and easily.

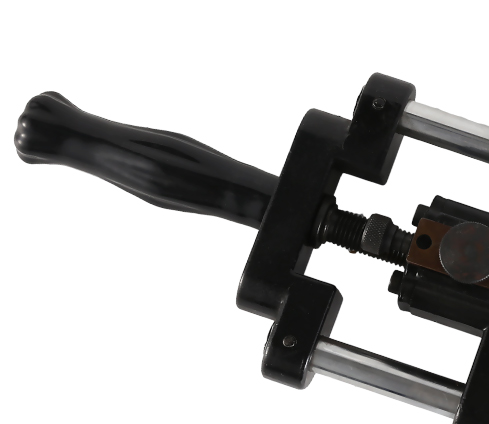

4.Rotation handle

The handle of wire stripper can be rotated, and the distance of the jaws can be adjusted by rotating the handle before stripping. It is comfortable to hold and suitable for a long time operation.


Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
