Chinese Professional Manufacturer Hydraulic Cable Cutter P-45 Hydraulic Steel Cable Cutter for Cu/Al/ACSR Cable

Chinese Professional Manufacturer Hydraulic Cable Cutter P-45 Hydraulic Steel Cable Cutter for Cu/Al/ACSR Cable

Product use and characteristics

1.Could cut Cu-Al cable/armored cable and ACSR cable
2.Movable style blade for quick replacement, wires could be put any position
3.Closed cutting head with bolt interlocking
4.The tool could be operated at 360 degree
5.It works with the hydraulic pump

EASY TO CUT

PROVIDING THE FIRST-CLASS PRODUCTS WITH HIGHEST COST PERFORMANCE

Product parameters
Model P-45
Cutting Range Cu/Al/ACSR Cable/Prestressed steel wire dia.≤45mm, Steel bar dia.≤20mm
Output 6T
Rated Pressure 700 bar(10000psi)
Weight 3.8kg
product details

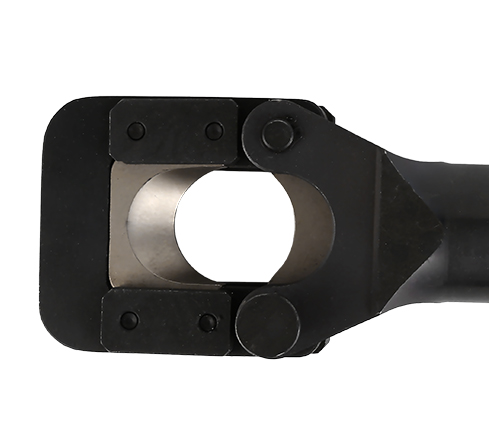

1.The cutter head could be opened

It is efficient and convenient to open the cutter head by removing the lock pin

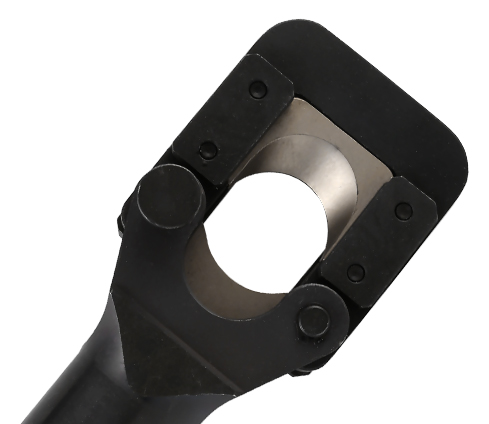

2.Solid cutter head

It is made of solid alloy steel. With heat treatment, it will be Sharp and efficient.

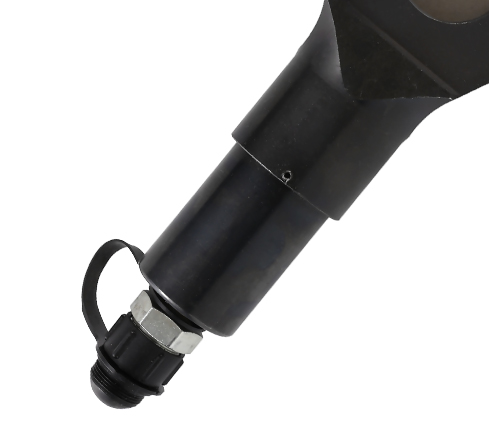

3.Joints+dirt-proof boot

The quick male joint is connected with the quick female joint of hydraulic pump(Screw Threads :NPT3/8”). Please twist the dirt-proof boot on the male joint to prevent the dust from entering.

4.The packaging of canvas bags

With firm material, it is comfortable to carry

5.Recommended Configuration: Manual hydraulic pump CP-700

Advantages: it can be used outdoors without power and easy to use and carry.

6.Electric hydraulic pump

Advantages:With electromagnetic valve, it is easy and effective to control the pressure increasing and releasing.


Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
