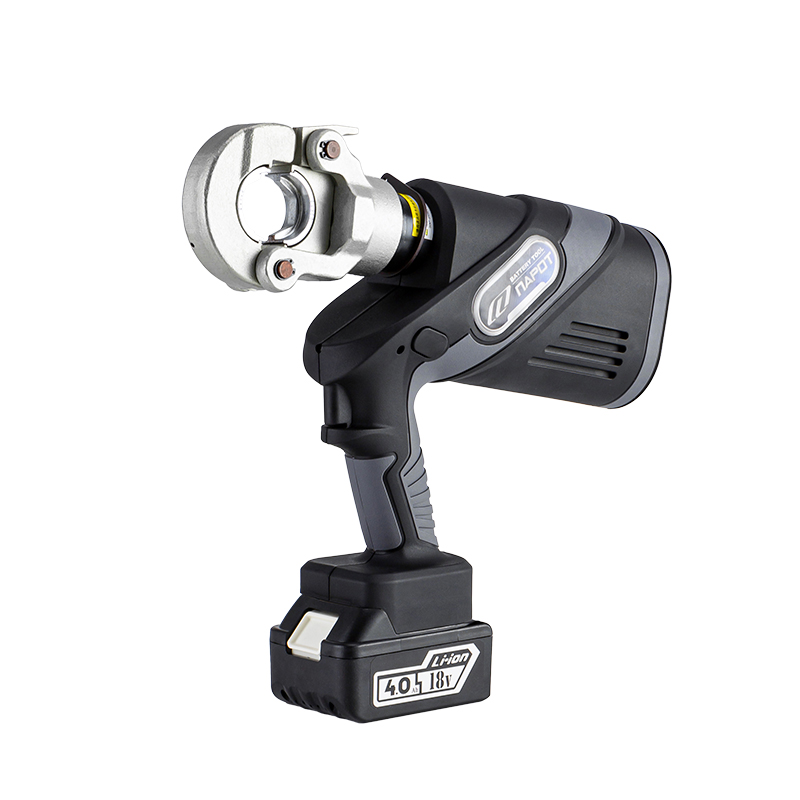

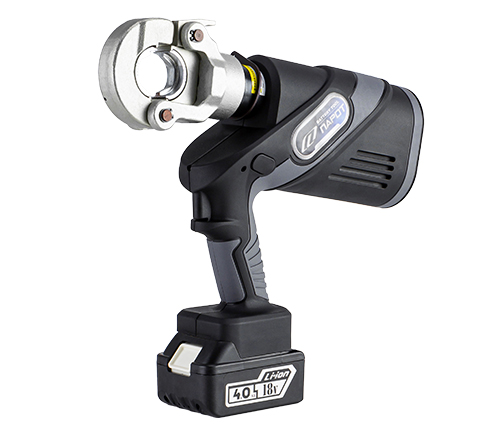

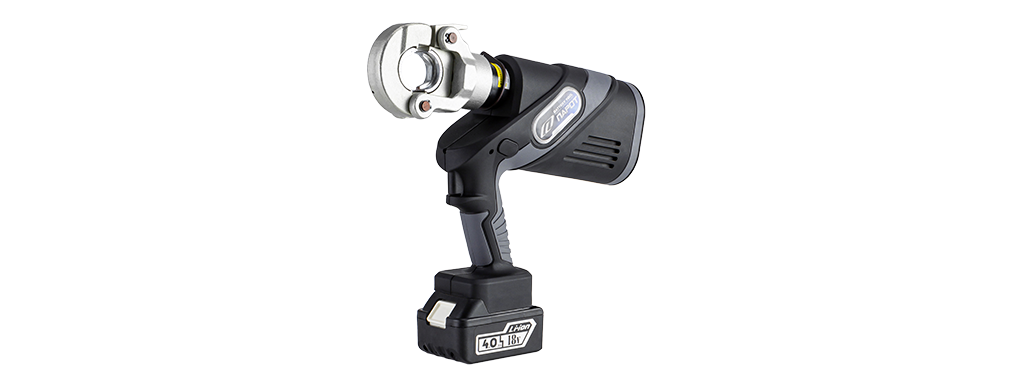

Model | NB-300 |
Crimping Range | Cu 16-300mm² |
Crimping force | 6T |
Crimping type | Hexagon |
Stroke | 17mm |
Weight | 16.5kg |
Standard accessorries | 16,25,35,50,70,95,120,150,185,240,300mm2 |

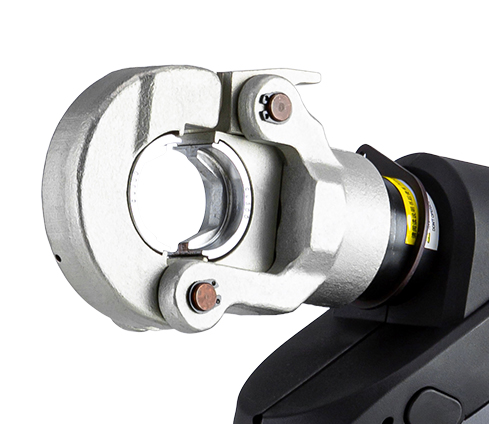

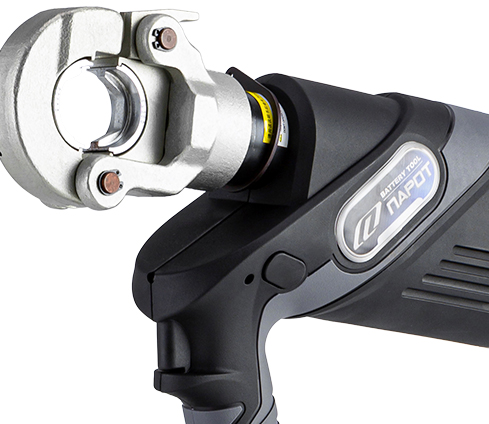

The head can be rotated 360°, and reached each crimping angle.

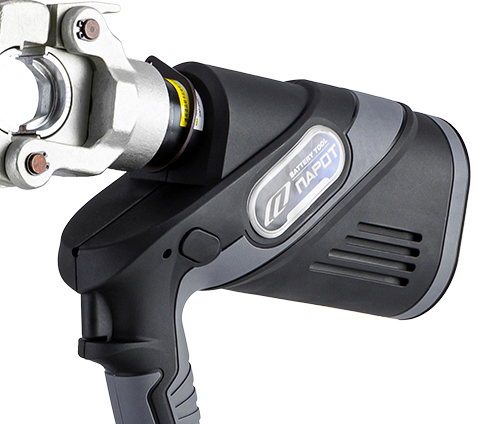

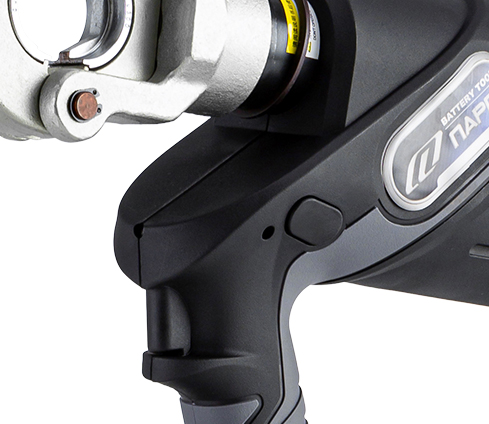

Configure white LED light for work area lighting.
Multiple times of crimping with one charge.
During the low pressure process, the piston is quickly pushing. After the mold contacts the terminal, the piston slowly pushes.
It can press copper and aluminum terminals.
Through an automatic pressure detection, it can reset manually after crimping.
