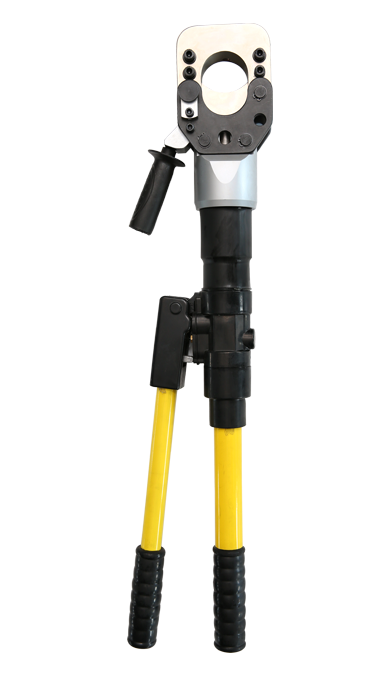

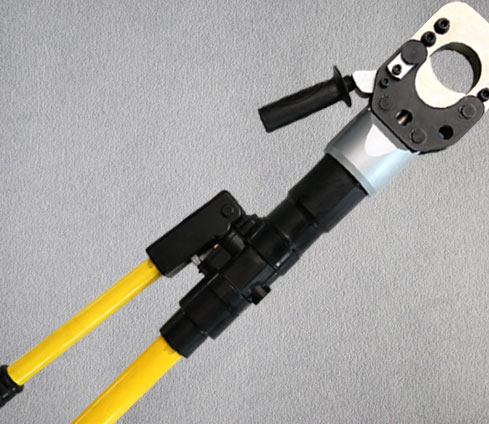

13T HP-55 Hydraulic cable cutter for 55mm ACSR /Steel rope wire 25mm Steel Bar

13T HP-55 Hydraulic cable cutter for 55mm ACSR /Steel rope wire 25mm Steel Bar

Product use and characteristics

1.Could cut Cu/Al cable/armored cable and ACSR cable
2.Movable style blade for quick replacement, wires could be put any position
3.Closed cutting head with bolt interlocking
4.The tool could be operated at 360 degree
5.It works with the hydraulic pump

EASY TO CUT

PROVIDING THE FIRST-CLASS PRODUCTS WITH HIGHEST COST PERFORMANCE

Product parameters
Model HP-55
Cutting Range Cu/AL/ACSR Cable/Prestressed steelwire dia.≤55mm, Steel bar dia.≤22mm
Output 13T
Rated Pressure 700 bar(10000psi)
Weight 9.3kg
product details

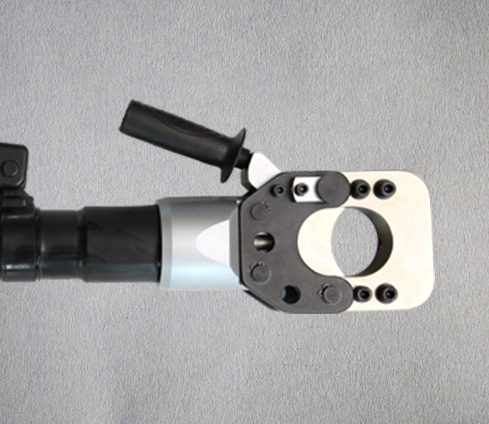

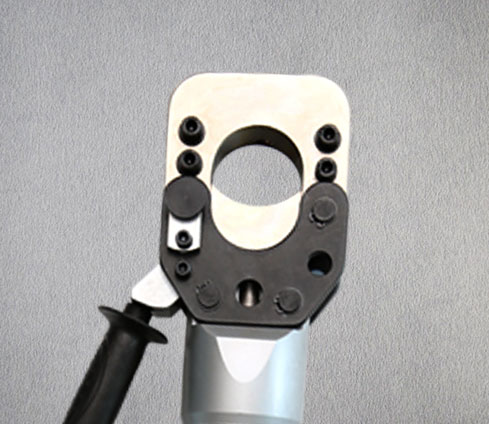

1.The cutter head could be opened

It is efficient and convenient to open the cutter head by removing the lock pin.

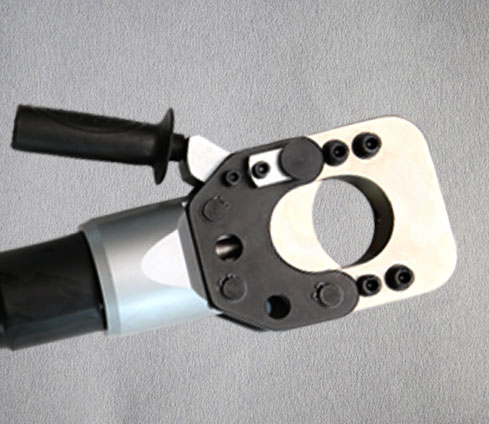

2.Solid Spring steel blade

Special heat treadment, made the cutter sharper and durable.

3.Humanized handle

More efficient and labor-saving.

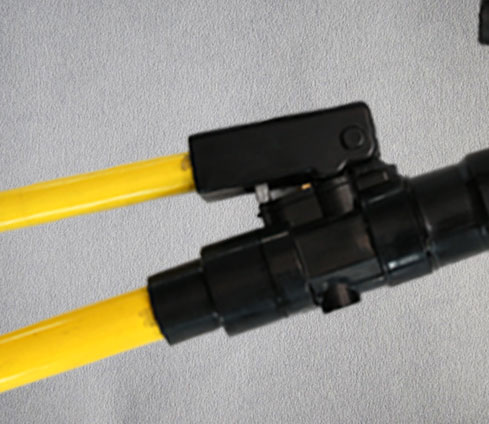

4.Double speed design

Ensure the quality of cutting and save labor.

5.Decompression valve

Twist the movable handle sheath, push down the movable handle overall when you want to return the blade in anytime.

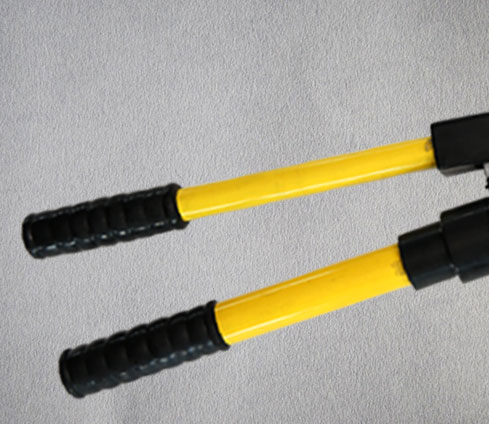

6.Extended handle

Slender appearance and convenient operation.

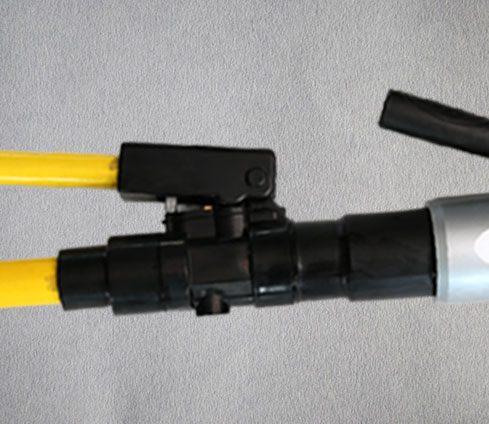

7.Enlarged hydro cylinder

It is more labor-saving with high pressure.

Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
