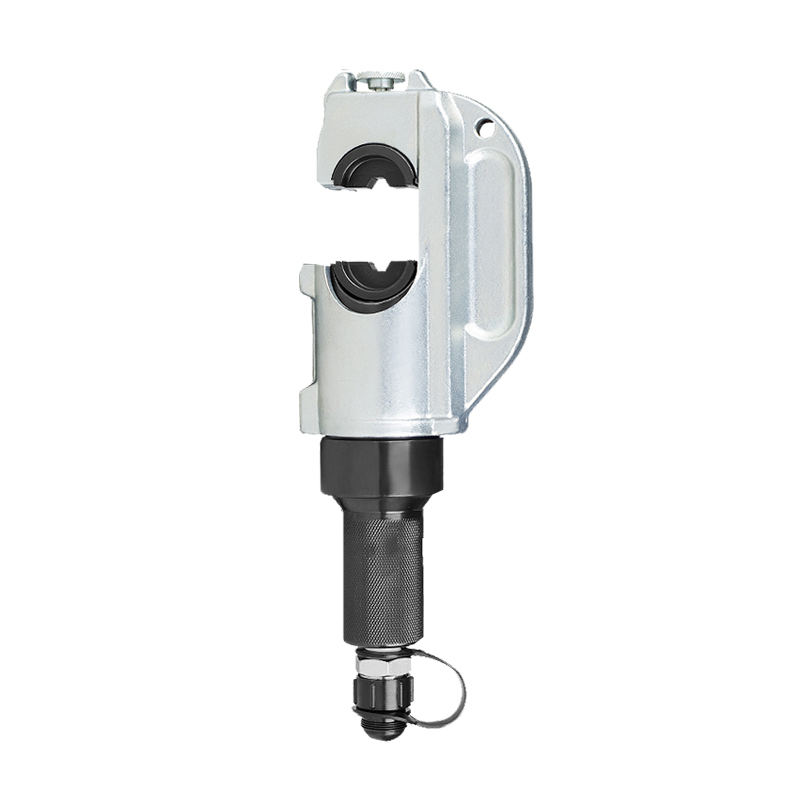

 Hydraulic crimping head crimping tools crimping pliers 50-400mm2 EP-431H

 Hydraulic crimping head crimping tools crimping pliers 50-400mm2 EP-431H

Product use and characteristics

EASY TO CRIMP

PROVIDING THE FIRST-CLASS PRODUCTS WITH HIGHEST COST PERFORMANCE

Product parameters
Model EP-431H
Crimping force 12T
Crimping type Hexagon
Stroke 32mm
Weight 4.0kg
Standard accessorries 50,70,95,120,150,185,240, 300,400mm2
product details

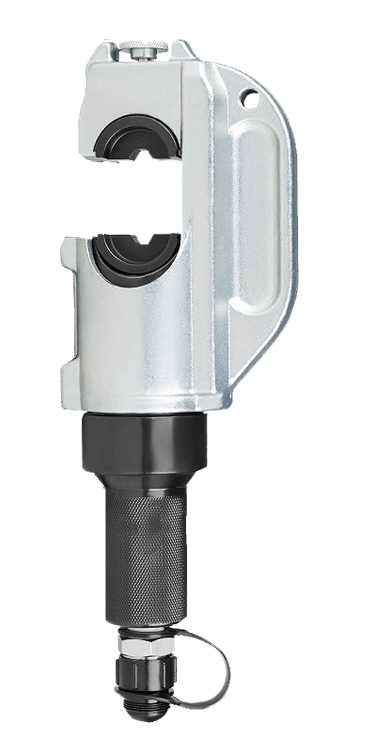

1.CRIMPER HEAD with C-shape open type

The stoke of the crimper is 32mm，which is convenient to put and take when you press the  copper and aluminum terminal.

2.Thickening mold design

The size is thicker than others, so it is tight and not easy to fall off.

3.It can be used with hydraulic pumps

Split hydraulic crimper should work with manual hydraulic pump or electric hydraulic pump.

4.Male connector+ plastic dirt-proof boot

The female connector on the hydraulic pump is connected with the male connector on the crimper (thread specification: ZG3/8). When not in use, the plastic boot can be screwed onto the male connector to prevent dust.

5.Portable plastic box packaging

The internal molds are arranged neatly.

Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
