EP-510H crimping capacity 50-400mm2 AL/CU terminal split hydraulic pliers

EP-510H crimping capacity 50-400mm2 AL/CU terminal split hydraulic pliers

Product use and characteristics

EASY TO CUT

PROVIDING THE FIRST-CLASS PRODUCTS WITH HIGHEST COST PERFORMANCE

Product parameters
Model EP-510H
Crimping force 13T
Crimping type Hexagon
Stroke 38mm
Weight 5.0kg
Standard accessorries 50,70,95,120,150,185,240, 300,400mm2
product details

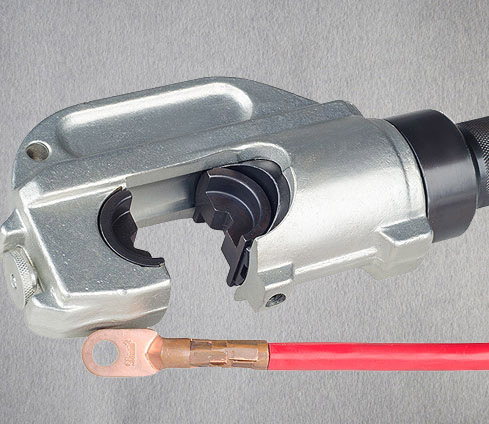

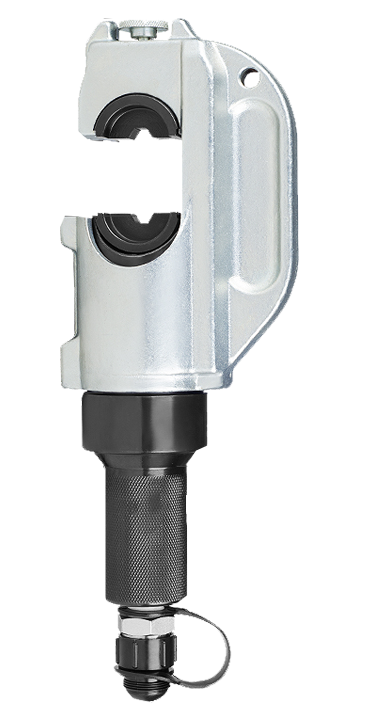

1.CRIMPER HEAD with C-shape open type

The maximum stroke  is 38mm, which is convenient to put and take when you press the copper and aluminum terminal.

2.Thickening mold design

The size is thicker than others, so it is tight and not easy to fall off.

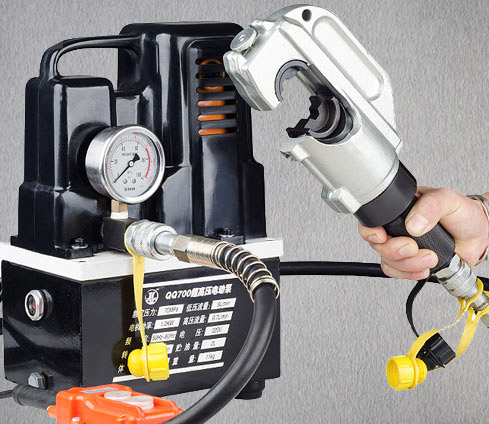

3.It can be used with hydraulic pumps

Split hydraulic crimper should work with manual hydraulic pump or electric hydraulic pump.

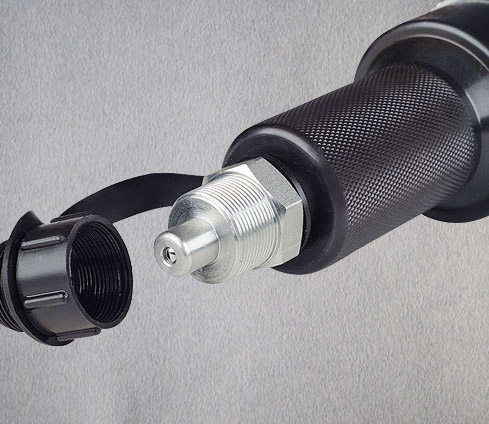

4.Male connector+ plastic dirt-proof boot

The female connector on the hydraulic pump is connected with the male connector on the crimper (thread specification: ZG3/8). When not in use, the plastic boot can be screwed onto the male connector to prevent dust.

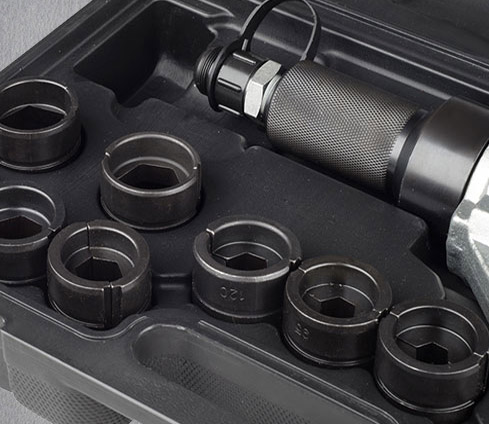

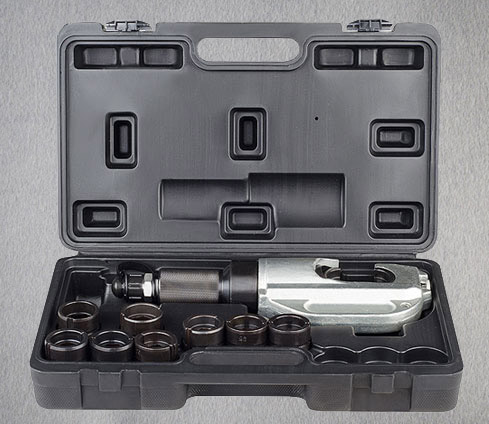

5.Portable plastic box packaging

The internal molds are arranged neatly.

Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
