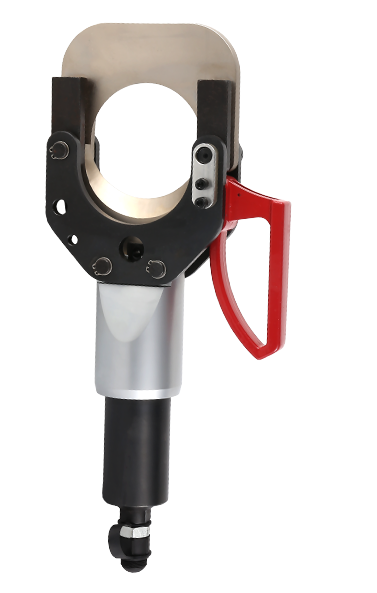

Heavy Duty Cable Cutting Tool Split Hydraulic Cutter P-105 Hydraulic Cable Cutter Cu-Al Cable Cutter

Heavy Duty Cable Cutting Tool Split Hydraulic Cutter P-105 Hydraulic Cable Cutter Cu-Al Cable Cutter

Product use and characteristics

1.suitable for cutting armoured copper - aluminium cable
2.Closed cutting head with bolt interlocking
3.Movable style blade for quick replacement, wires could be put any position
4.360-degree rotation of the head
5.Single acting hydraulic pump is connected

EASY TO CUT

PROVIDING THE FIRST-CLASS PRODUCTS WITH HIGHEST COST PERFORMANCE

Product parameters
Model P-105
Cutting Range Cu/AL Cable dia.≤105mm, Armored cables3×300mm2
Output 12T
Rated Pressure 700 bar(10000psi)
Weight 7.5kg
product details

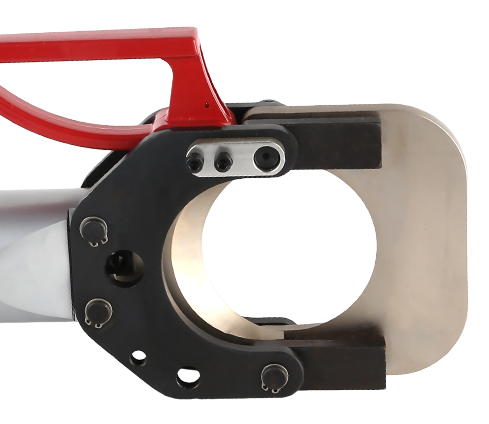

1.Cutter bit can be opened

The cutter bit can be opened by removing the bolt, which is efficient and convenient

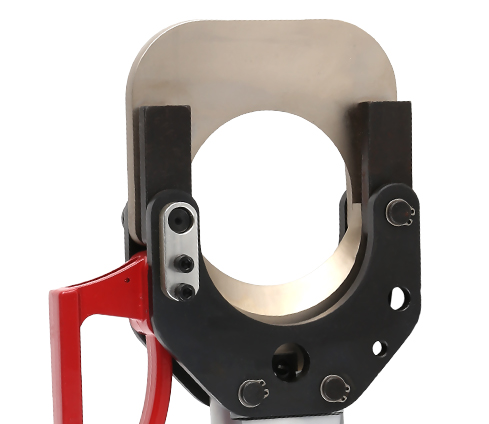

2.The solid cutter bit

It is made of solid alloy steel. With heat treatment, it will be Sharp and efficient

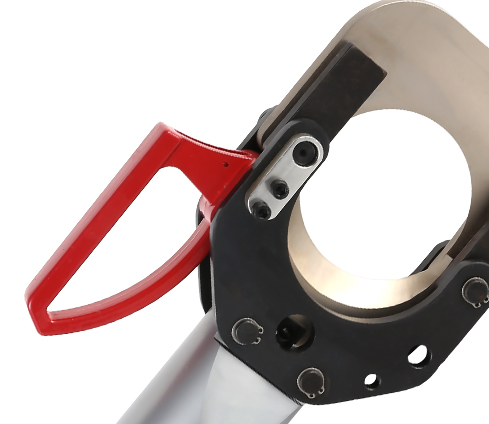

3.Comfortable handle

The humanized handle design makes the grip feel comfortable and convenient to carry and carry.

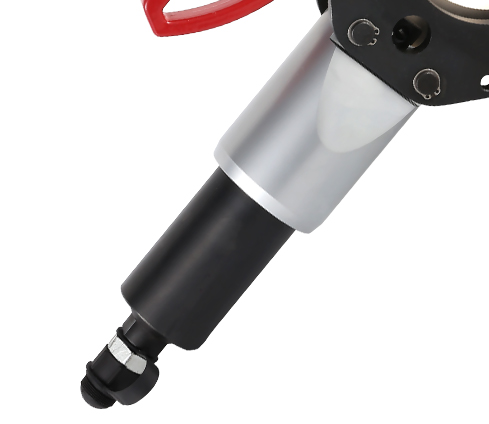

4.Joints+dirt-proof boot

The quick male joint is connected with the female joint on the hydraulic

5.The packaging of canvas bags:

With firm material, it is comfortable to carry

6.Recommended Configuration: Manual hydraulic pump CP-700

Advantages: it can be used outdoors without power and easy to use and carry.

7.Electric hydraulic pump

Advantages:With solenoid valve, it is easy and effective to control foot switch of increasing and releasing pressure.

Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
