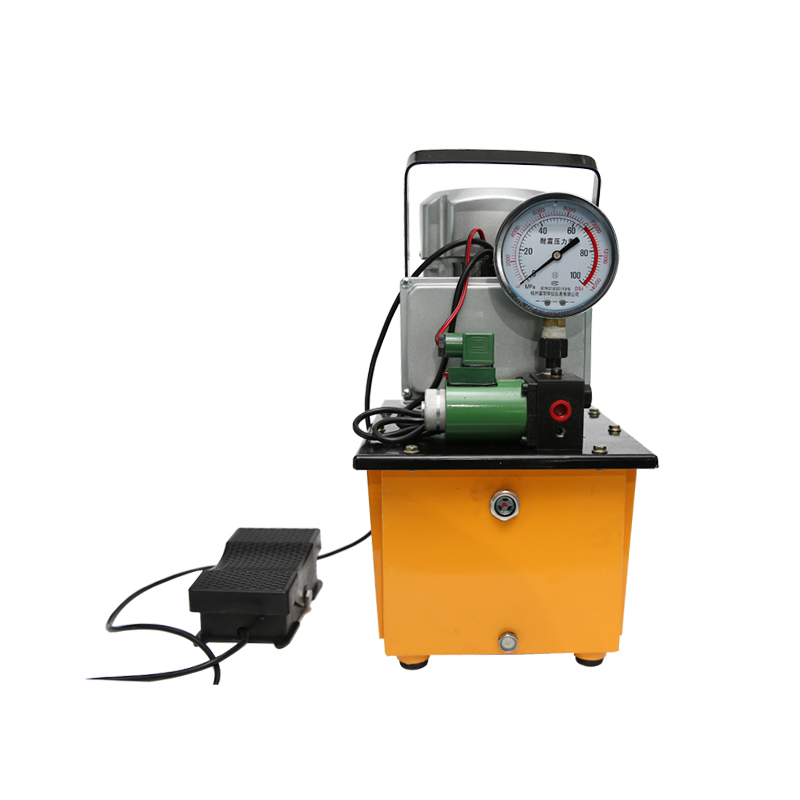

ZCB-700B 70Mpa high pressure single acting electric hydraulic pump with foot pedal

ZCB-700B 70Mpa high pressure single acting electric hydraulic pump with foot pedal

Product use and characteristics

The electric oil pump is composed of Singlephase and asynchronous motors, electromagnetic valve, switch with hand or foot, high-pressure oil pump, oil tank, oil pipe, etc. With small volume, high pressure, high power, simple structure, wired remote control, it is easy to use.

Product parameters
Model ZCB-700
Working voltage 220v single
Power rating 750w
Oil Delivery Low pressure(O-20bar):5L/min, high pressure(20-700bar):0.9L/min
Reservoir capacity 7L
Weight 29kg
product details

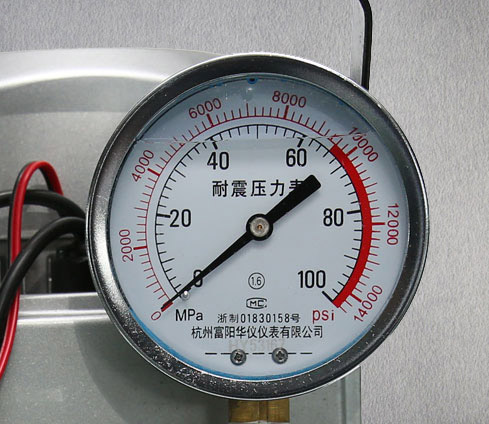

1.Shockproof pressure gauge

The impact on vibration can be avoided effectively. Instrument indication is stable and clear.

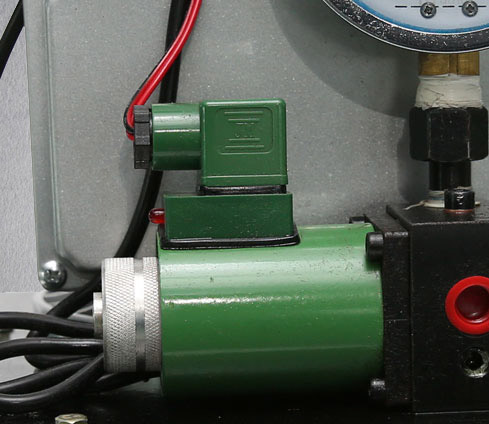

2.ELECTROMAGNETIC valve

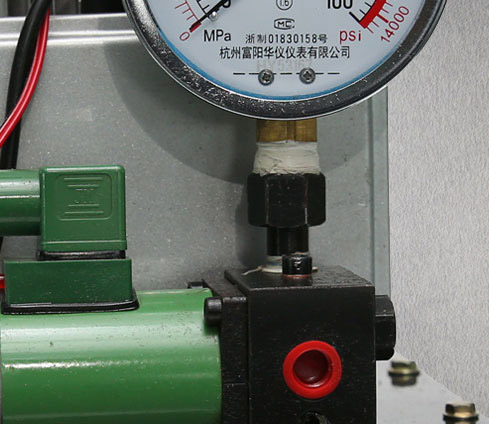

3.Connector

High hardness and long service life.

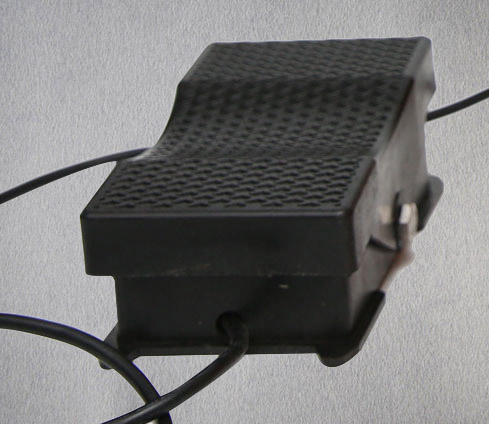

4.Switch with foot

5.Aluminum Casing

Aluminum shell, copper core, Good stability and high efficiency, Long service life and strong power.

Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
