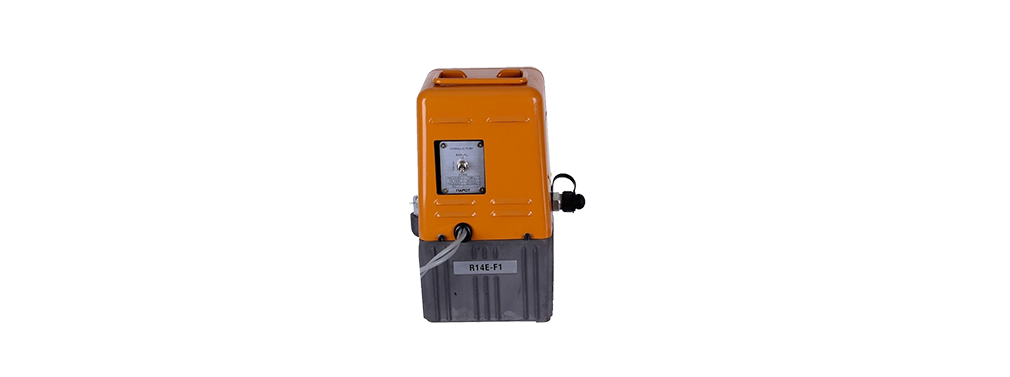

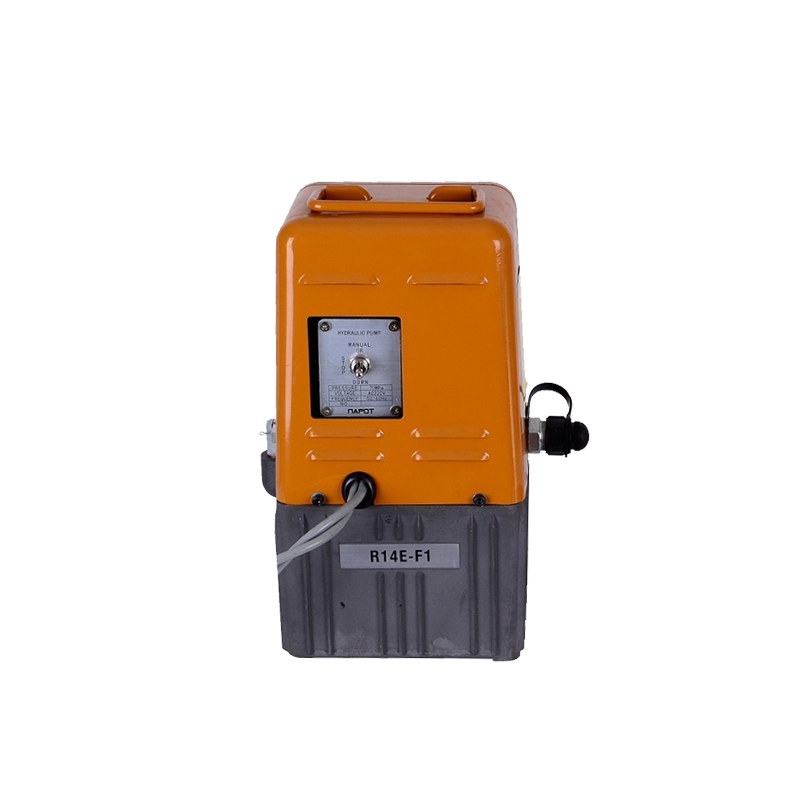

R14E-F1 700bar portable mini power pack electric hydraulic pump

R14E-F1 700bar portable mini power pack electric hydraulic pump

Product use and characteristics

1.High and low speed two stage design is for quick oil output. Turbine oil absorption could ensure reaching Max. Effective oil volume.
2.Over pressure safe valve unit could avoid over pressure damage. At 700Kg/cm2, automatically release.
3.Oil pipe fitted with quick coupling could be ordered for any length.
4.Oil pipe coupling fitted with PT3/8”

Product parameters
Model R14E-F1
Working voltage 220v single
Power rating 340w
Oil Delivery Low pressure(O-20bar):2.6L/min, high pressure(20-700bar):0.32L/min
Reservoir capacity 2L
Weight 15kg
product details

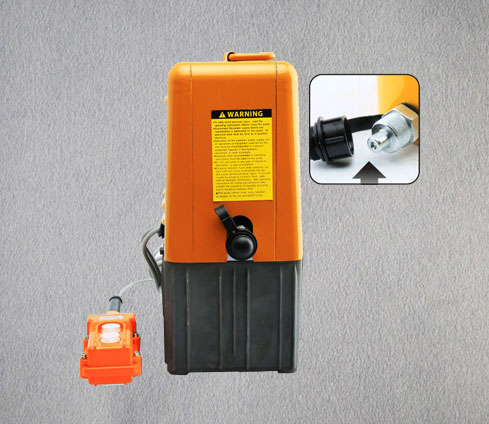

1.Configure 3/8 fast interface

More convenient to use and save you time.

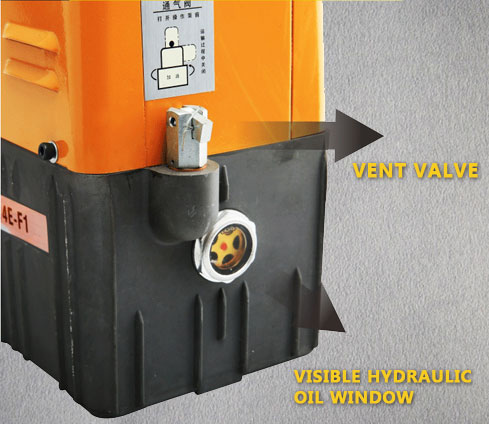

2.Visible hydraulic oil window

Real-time observation of whether the hydraulic oil is in the normal range for timely oiling.

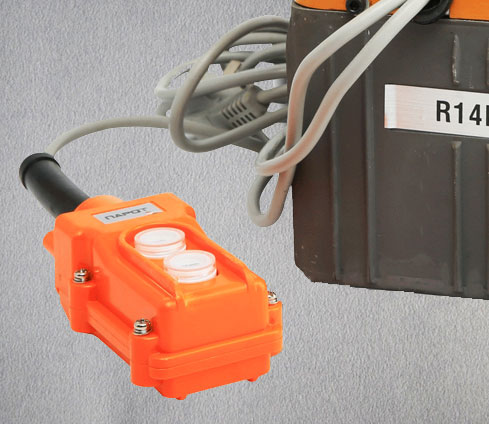

3.Dedicated wire switch

The above is the open button, and the below is the close button.

Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
