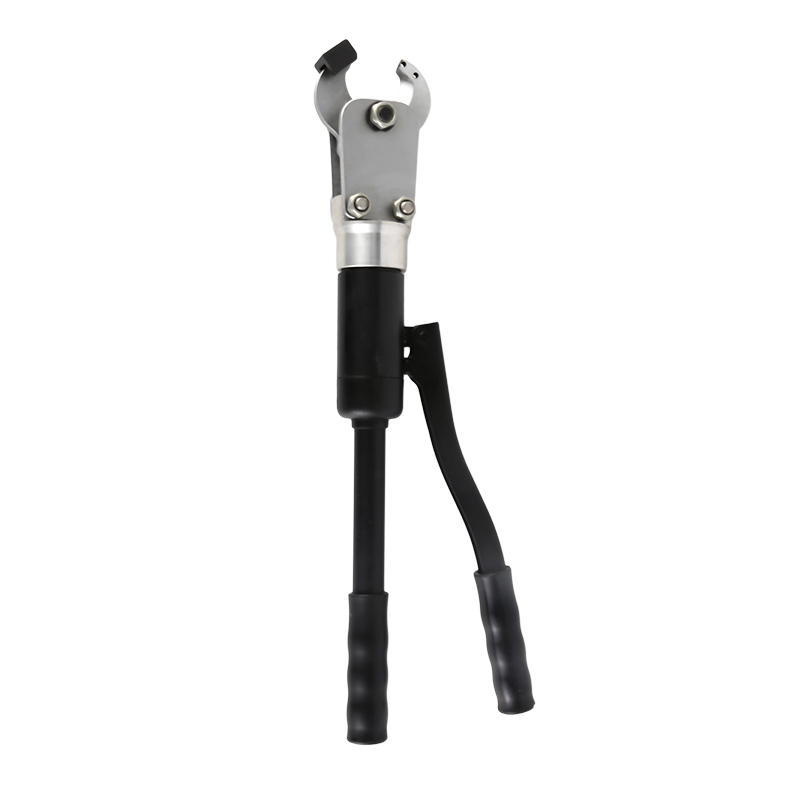

HP-30C Hand Hydraulic Cable Cutter With Cutting Force 6t & Max Cutting Capacity Dia 30mm

HP-30C Hand Hydraulic Cable Cutter With Cutting Force 6t & Max Cutting Capacity Dia 30mm

Product use and characteristics

1.Could cut Cu/Al cable/armored cable
2.Movable style blade for quick replacement, wires could be put any position
3.Closed cutting head with bolt interlocking
4.The tool could be operated at 360 degree
5.It works with the hydraulic pump

EASY TO CUT

PROVIDING THE FIRST-CLASS PRODUCTS WITH HIGHEST COST PERFORMANCE

Product parameters

Model

HP-30C

Cutting Range

Armored Cu/AL Cable dia.≤30mm

Output

6T

Rated Pressure

700 bar(10000psi)

Weight

4.2kg

product details

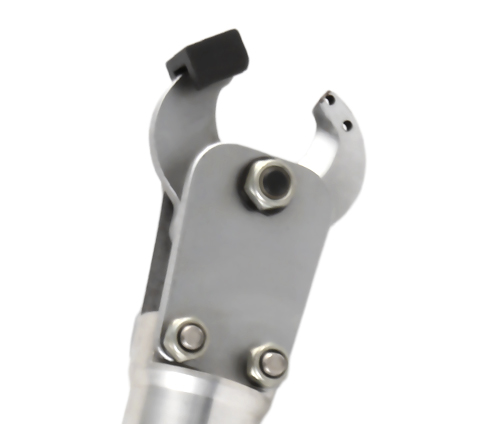

1.C-Shape Design Of Open-Type

Cutting Easily And Conveniently

2.Guide Pad

Effectively Prevent Blade Dislocation During Cutting

3.Solid Spring Steel Blade

Special Heat Treatment, Made The Cutter Sharper And Durable.

4.Double Speed Design

Ensure The Quality Of Cutting And Save Labor.

5.Decompression Valve

It Is Convenient To Twist The Button When You Want To Return The Blade In Anytime.

6.Enlarged Oil Cylinder

The Oil Cylinder Of Cable Cutter Is Enlarged To Make Cutting More Efficient.



Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
