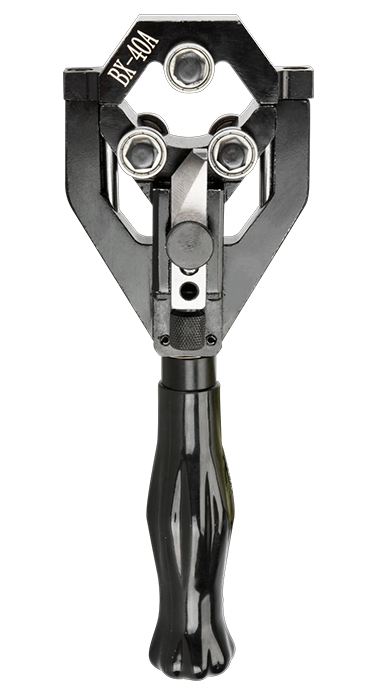

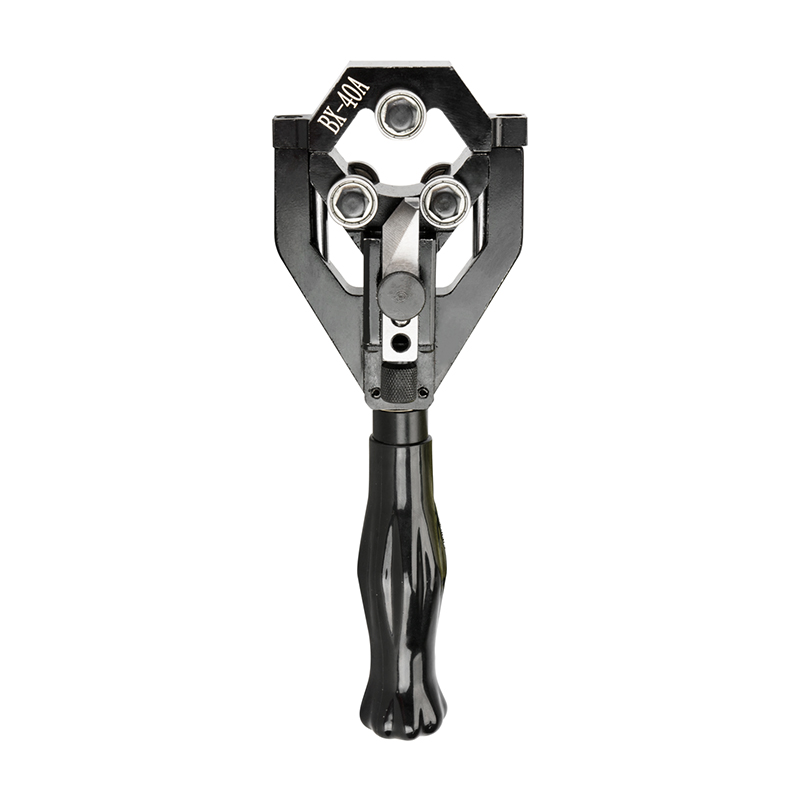

BX-40A Wire Stripper Cutter for 11KV Dia 20 to 40mm Cable

BX-40A Wire Stripper Cutter for 11KV Dia 20 to 40mm Cable

Product use and characteristics

1.It is suitable for stripping of the main insulation layer at the end of Ø20-40mm cable

2.With simple operation, rapid peeling, no damage to the core, and light carrying, it is simple, intuitive and convenient

3.Forged from alloy steel, the blade will be sharper and more durable after heat treatment and grinding process and can remove, replace, grinding.

Product parameters
Model BX-40A
Stripping range Insulation layer of cable(10kv) with dia.15-40mm
Weight: 0.8kg
size 250×85×55mm
product details

1.HIGH QUALITY CARBON STEEL adopted

It is durable, small in size, light in weight and easy to operate.

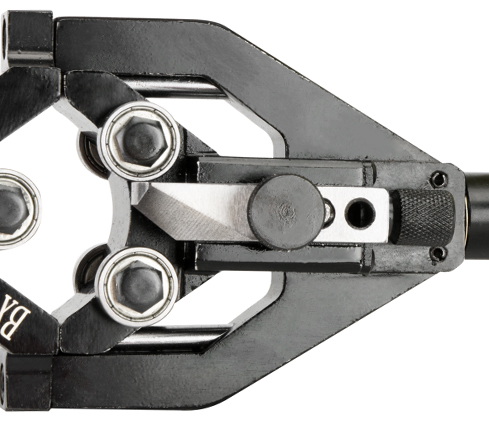

2.Switch to adjust BLADE

When the wire is stripped, the depth of the blade can be adjusted at will and the core is not easily damaged.

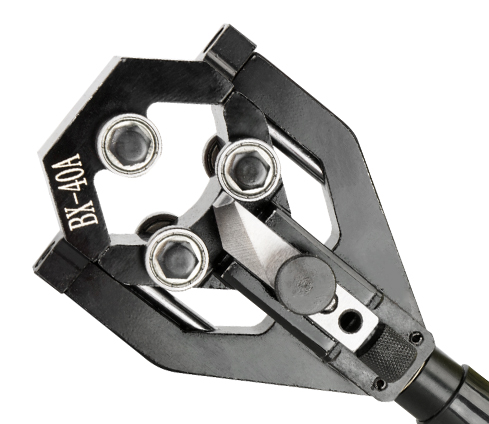

3.Rolling bearing

Adjust the distance between the jaws so that the rolling bearing catches the cable which helps to rotates the wire stripper quickly and easily.

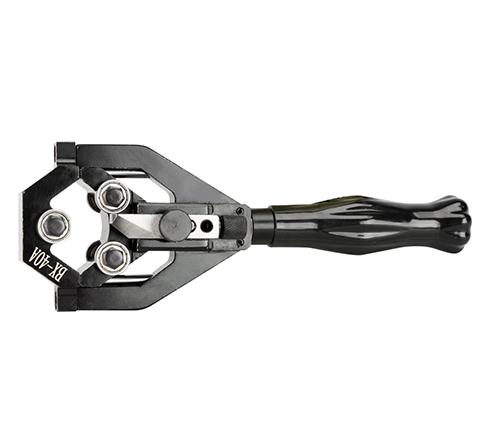

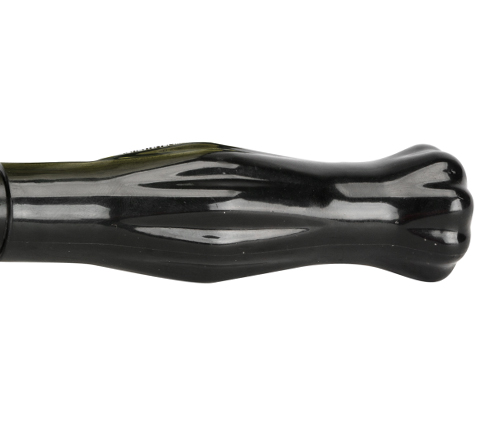

4.Rotary handle

The handle of wire stripper can be rotated, and the distance of the jaws can be adjusted by rotating the handle before stripping. It is comfortable to hold and suitable for a long time operation.

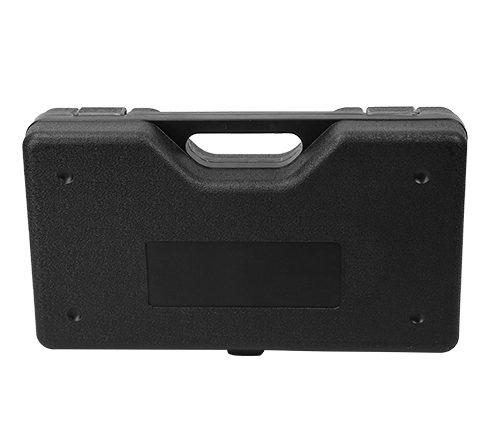

5.Packing box

The tool box is resistant to pressure, easy to store and use.

Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
