P-120 AL CU cable 120 mm ACSR 120mm Hydraulic cutting tools heat treated Hydraulic cable cutter

P-120 AL CU cable 120 mm ACSR 120mm Hydraulic cutting tools heat treated Hydraulic cable cutter

Product use and characteristics

1.suitable for cutting armoured copper - aluminium cable
2.Closed cutting head with bolt interlocking
3.Movable style blade for quick replacement, wires could be put any position
4.360-degree rotation of the head
5.Single acting hydraulic pump is connected



EASY TO CUT

PROVIDING THE FIRST-CLASS PRODUCTS WITH HIGHEST COST PERFORMANCE

Product parameters
Model P-120
Cutting Range Cu/Al/Armored Cable dia.≤120mm
Output 12T
Rated Pressure 700 bar(10000psi)
Weight 11kg
product details

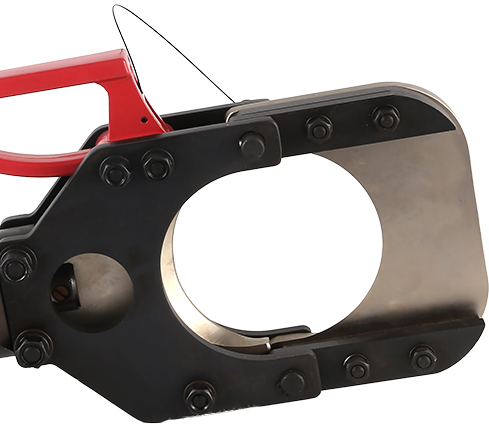

1.The cutter head could be opened

It is efficient and convenient to open the cutter head by removing the lock pin.

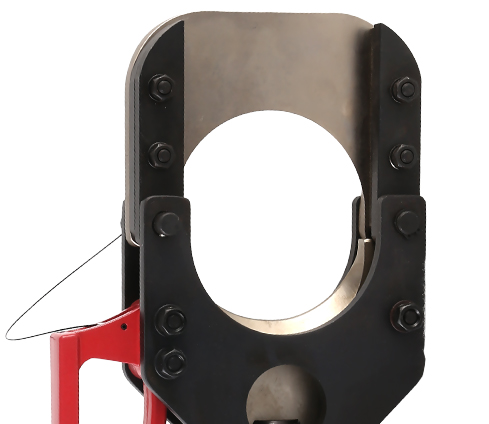

2.Solid cutter head

It is made of solid alloy steel. With heat treatment, it will be Sharp and efficient

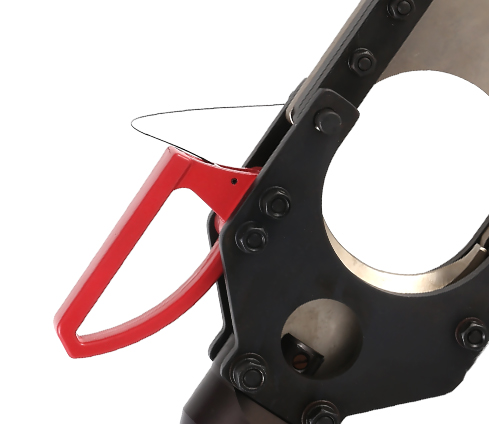

3.Comfortable handle

The humanized handle design makes the grip comfortable and convenient to carry.

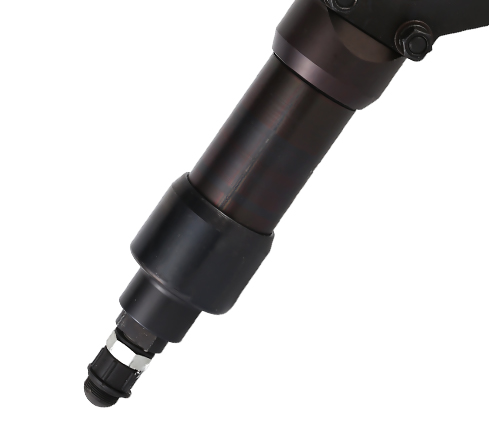

4.Joints+dirt-proof boot

The quick male joint is connected with the quick female joint of hydraulic pump(Screw Threads :NPT3/8”). Please twist the dirt-proof boot on the male joint to prevent the dust from entering.

5.The packaging of canvas bags:

With firm material, it is comfortable to carry

6.Recommended Configuration: Manual hydraulic pump CP-700

Advantages: it can be used outdoors without power and easy to use and carry.

7.Electric hydraulic pump

Advantages:With electromagnetic valve, it is easy and effective to control the pressure increasing and releasing.

Scope of application

Wide range of uses

Widely used in electric power, steel, petrochemical, mining, railways, highways, pipelines, sea rescue, etc.Cutting pliers for cutting cables, shipbuilding, bridges, aviation, metallurgical chemicals, etc.
